Code: HJ-TS-I010
Operating direction: straight press
Size: 12 * 12mm
Purpose: suitable for various electronic audio equipment, office equipment, communication equipment, measuring instruments, TVs, video recorders, automobiles and other operations
Features: It can be directly installed on the circuit board by pressing
Suitable for reflow welding A part of the output terminal can be used as a jumper lead, and the circuit design is simple


Product Center

I series 6x6 middle two pin, 12x12 positive press

Tact switch series

Key words:

Product Details

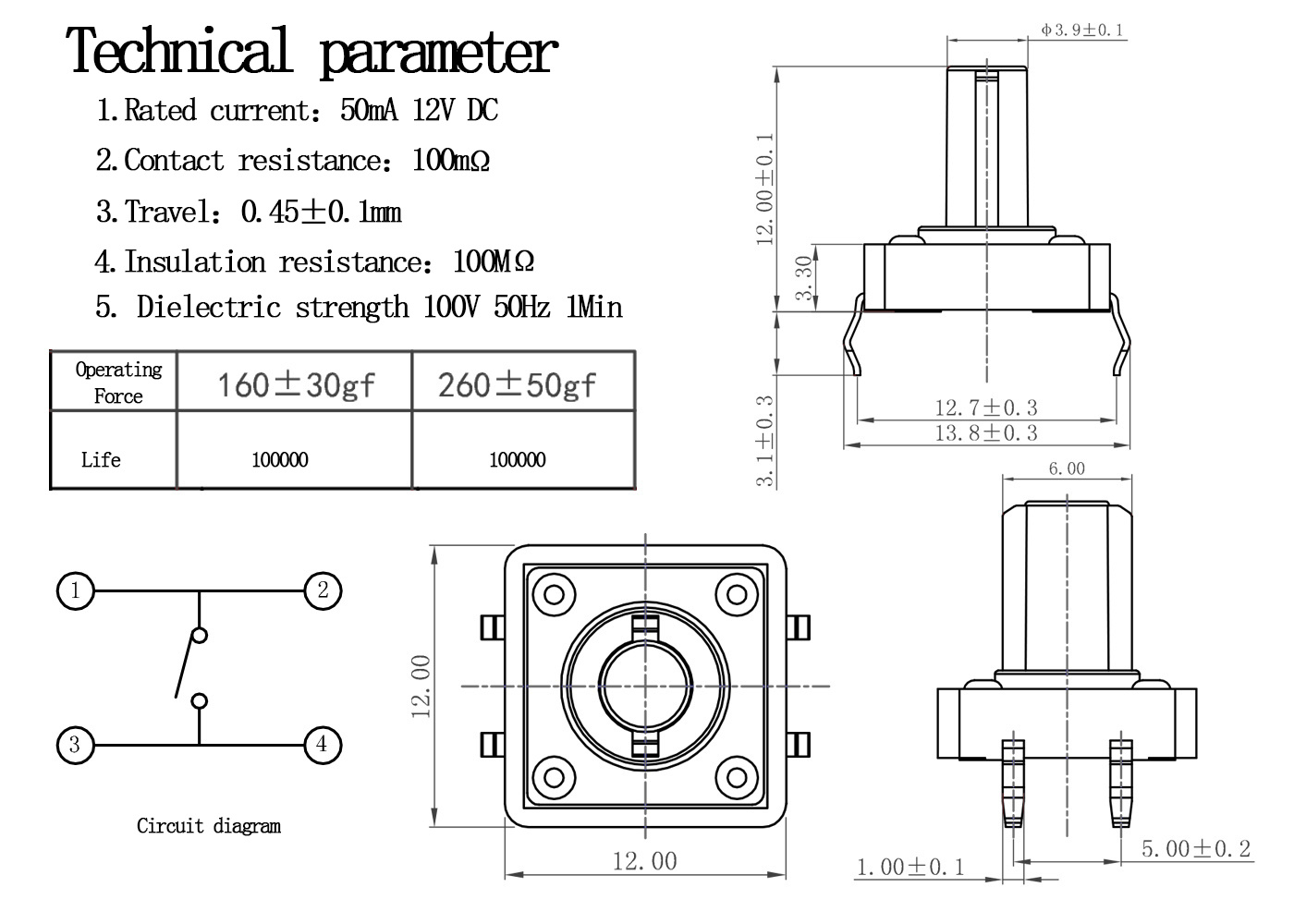

Circuit diagram

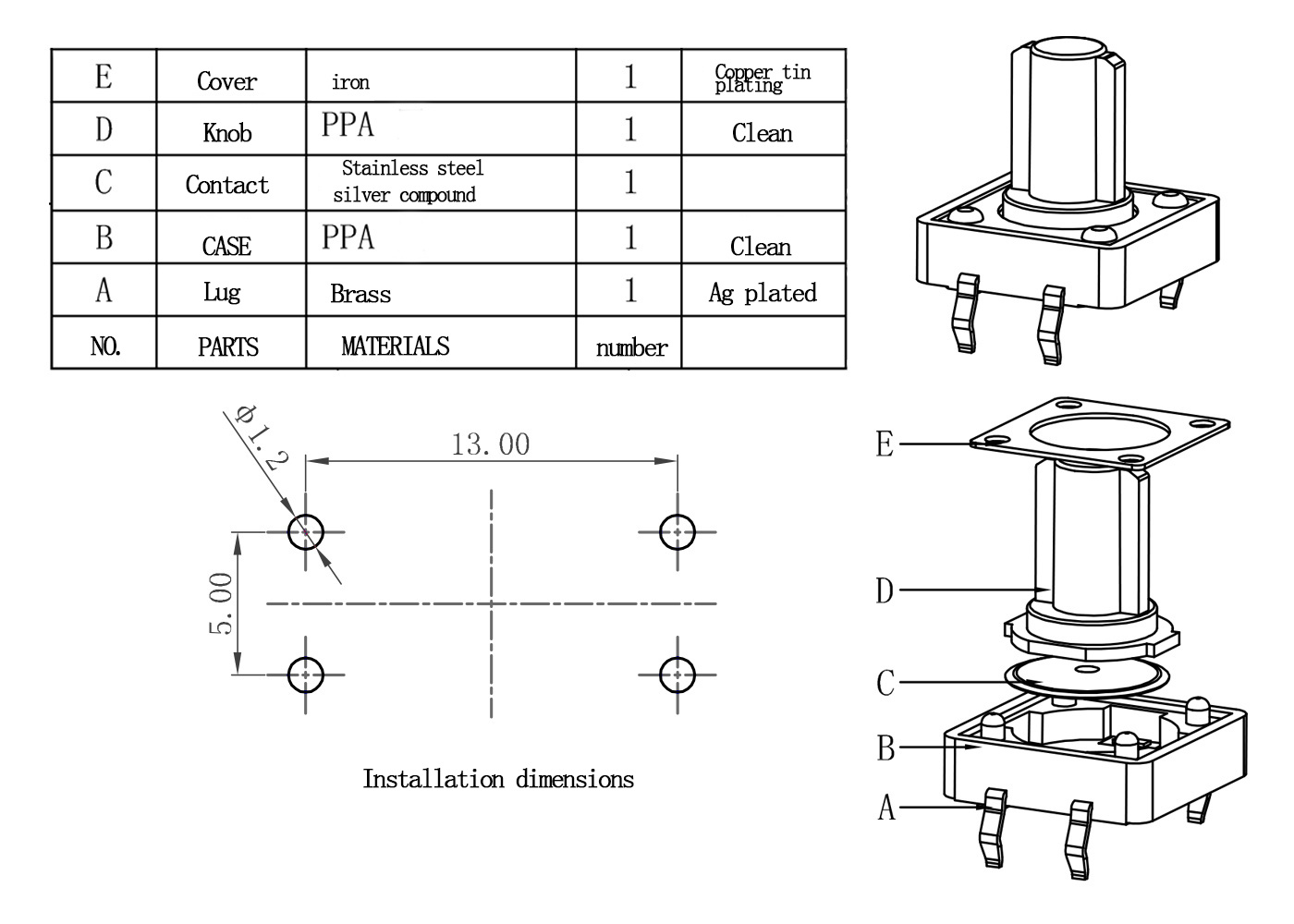

PCB reference drawing
