HJ-TS-D003

Code: HJ-TS-D003 Size: 6*6mm Operation method: Press directly Applications: Suitable for a variety of electronic audio equipment, office equipment, communication devices, measuring instruments, TVs, video recorders, and more. Features: Can be directly installed onto the circuit board via a snap-in mechanism. A portion of the output terminals can be used as jumper wires, making the circuit design simple. Standard button optional.

Category:

Product Center

D series 4.5x4.5, 6x6 positive press

Tact switch series

Product Message

Key words：

Product Details

Technical Parameters
1. Rated current: 50mA 12V DC
2. Contact resistance: 100 milliohms
3. Applied force: 260 ± 50 gf
4. Travel: 0.3 ± 0.1 mm
5. Insulation resistance: 100 megohms
6. Dielectric strength: 100V 50Hz 1 min
7. Lifespan: 50,000 cycles

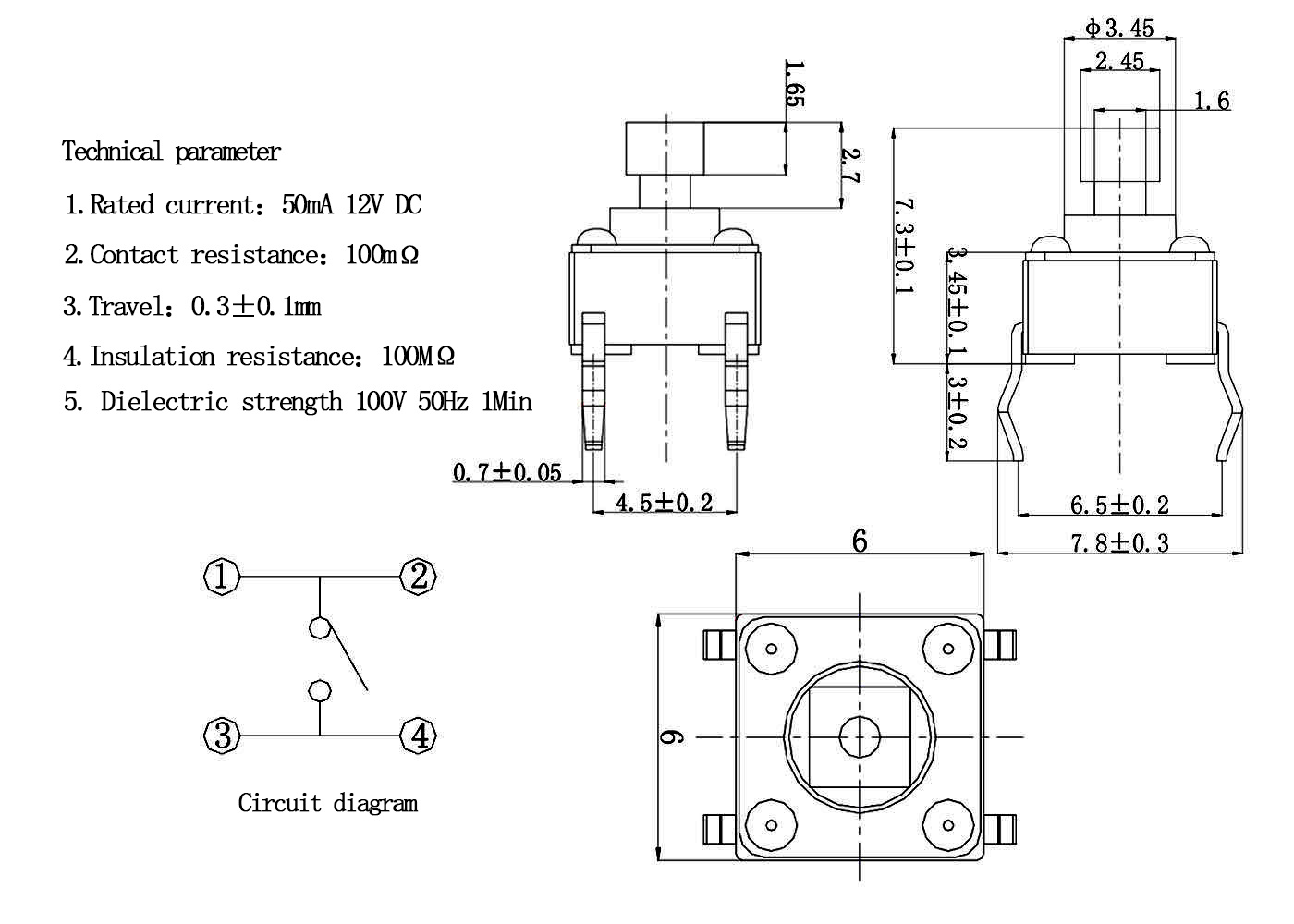

Circuit diagram 6x6x7.3 square-head plug-in pin

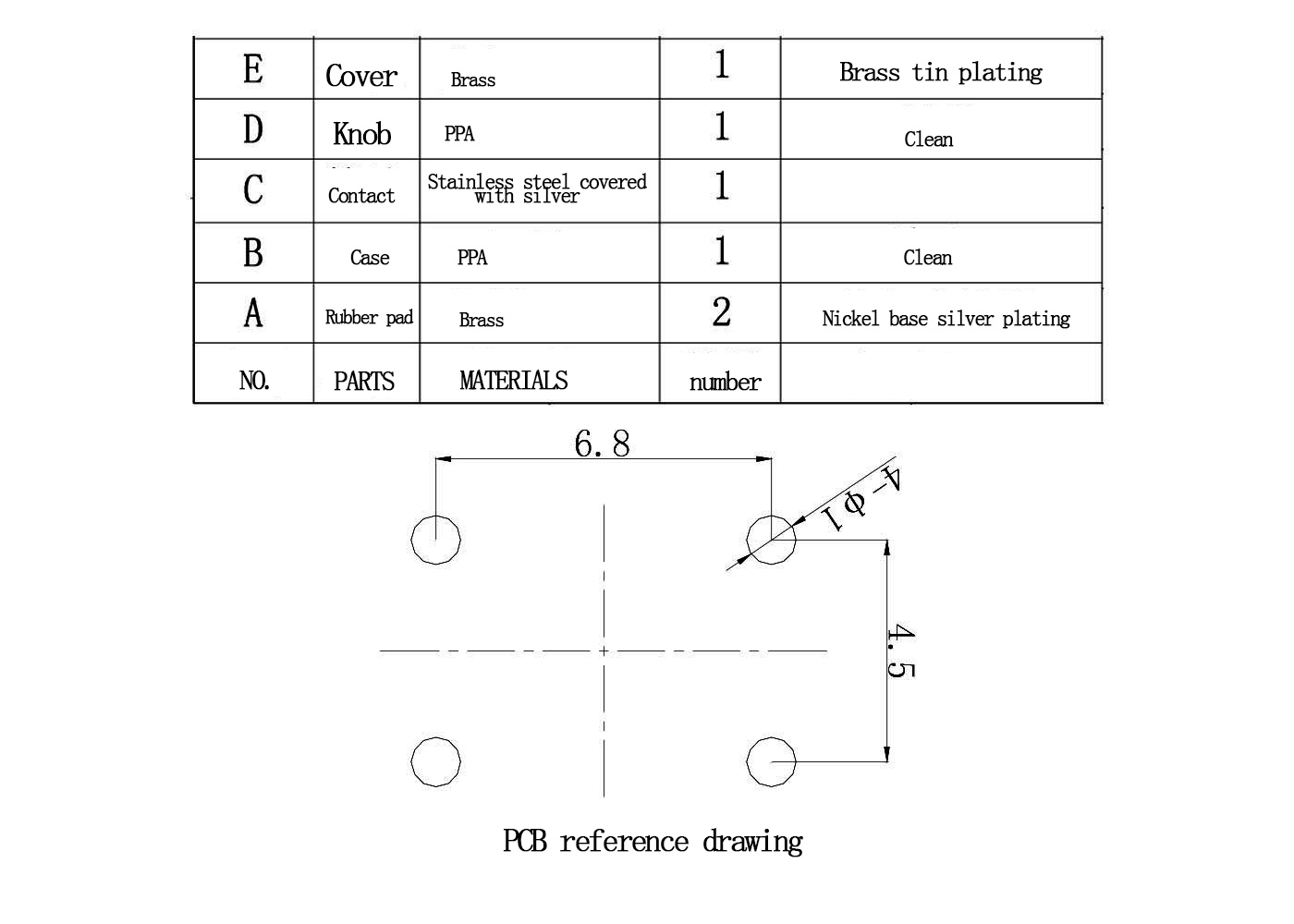

PCB reference diagram
