HJ-TS-D001

Code: HJ-TS-D001 Dimensions: 4.5 x 4.5 mm Operation method: Press directly Applications: Suitable for various electronic audio equipment, office equipment, communication devices, measuring instruments, TVs, video recorders, and more. Features: Can be directly installed onto the circuit board via a snap-in mechanism. A portion of the output terminals can be used as jumper wires, making the circuit design simple. Standard button optional.

Category:

Product Center

D series 4.5x4.5, 6x6 positive press

Tact switch series

Product Message

Key words：

Product Details

Technical Parameters
1. Rated current: 50mA, 12V DC
2. Contact resistance: 100 milliohms
3. Stroke: 0.15 ± 0.05 mm
4. Insulation resistance: 100 megohms
5. Dielectric strength: 100V, 50Hz, 1 min

Circuit diagram

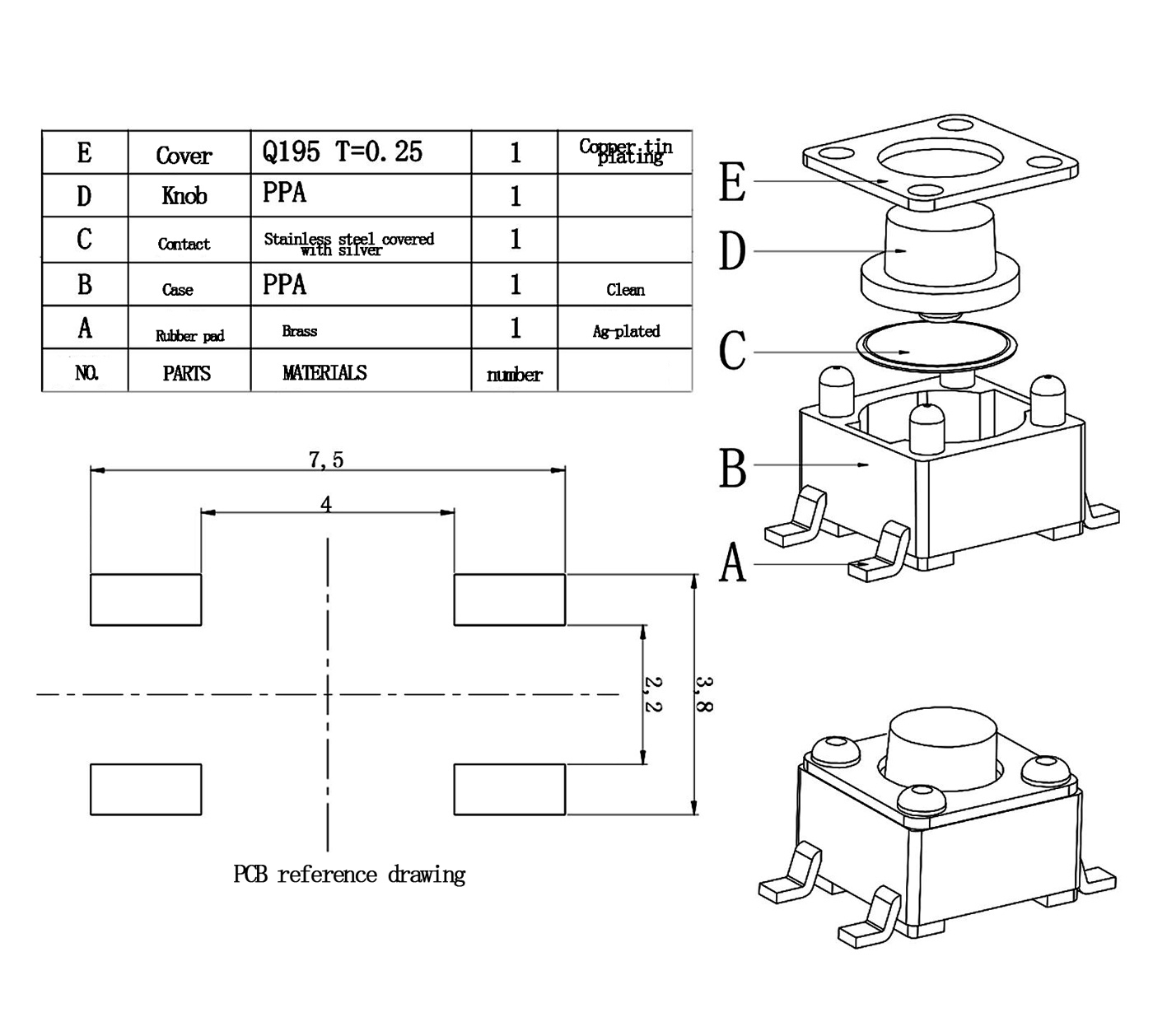

PCB reference diagram
