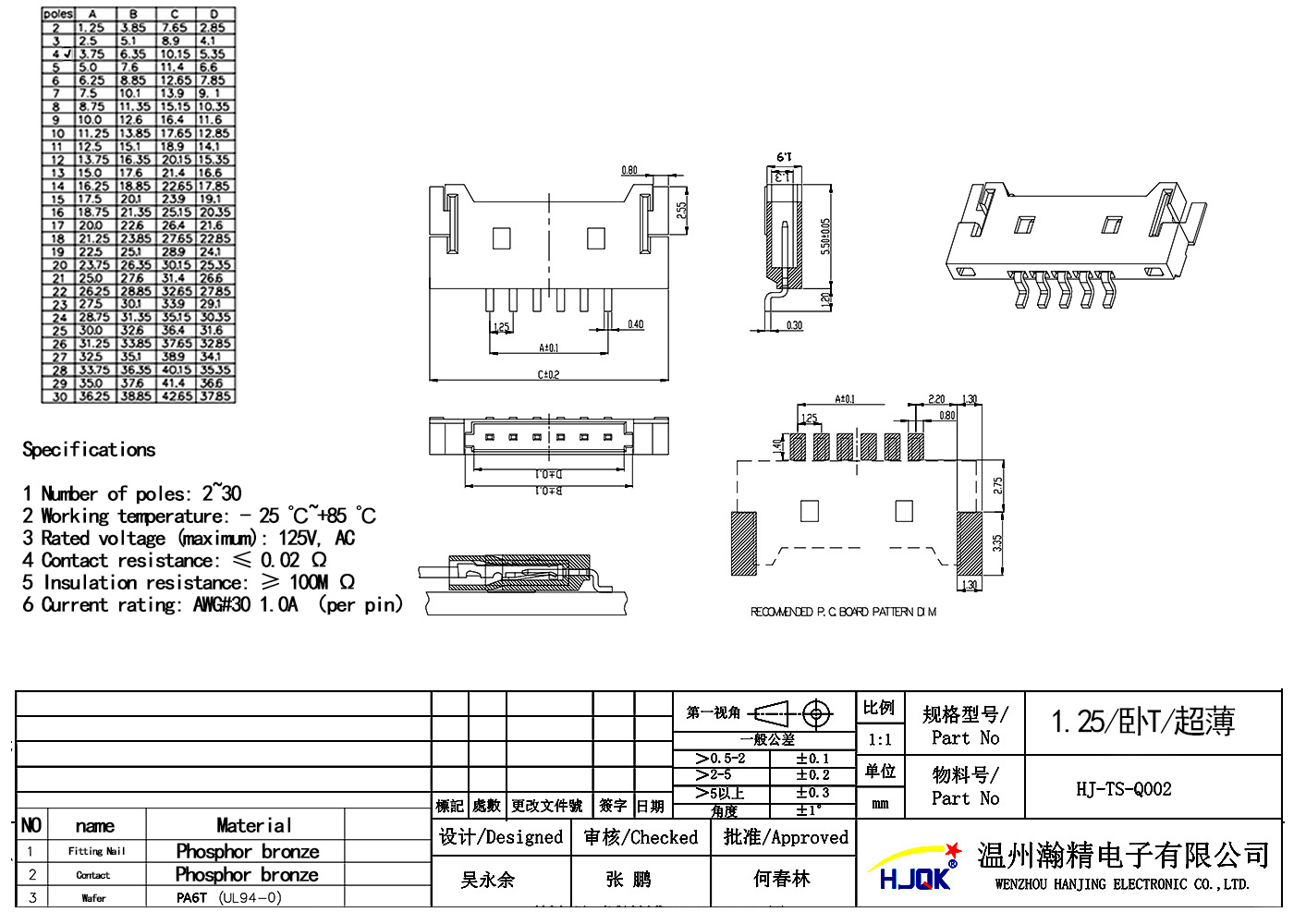

1.25 Ultra thin horizontal sticker
Specifications
1 Number of poles: 2~30
2 Working temperature: - 25 ℃~+85 ℃
3 Rated voltage (maximum): 125V, AC
4 Contact resistance: ≤ 0.02 Ω
5 Insulation resistance: ≥ 100M Ω
6 Current rating: AWG#30 1.0A （per pin）
1 Number of poles: 2~30
2 Working temperature: - 25 ℃~+85 ℃
3 Rated voltage (maximum): 125V, AC
4 Contact resistance: ≤ 0.02 Ω
5 Insulation resistance: ≥ 100M Ω
6 Current rating: AWG#30 1.0A （per pin）
