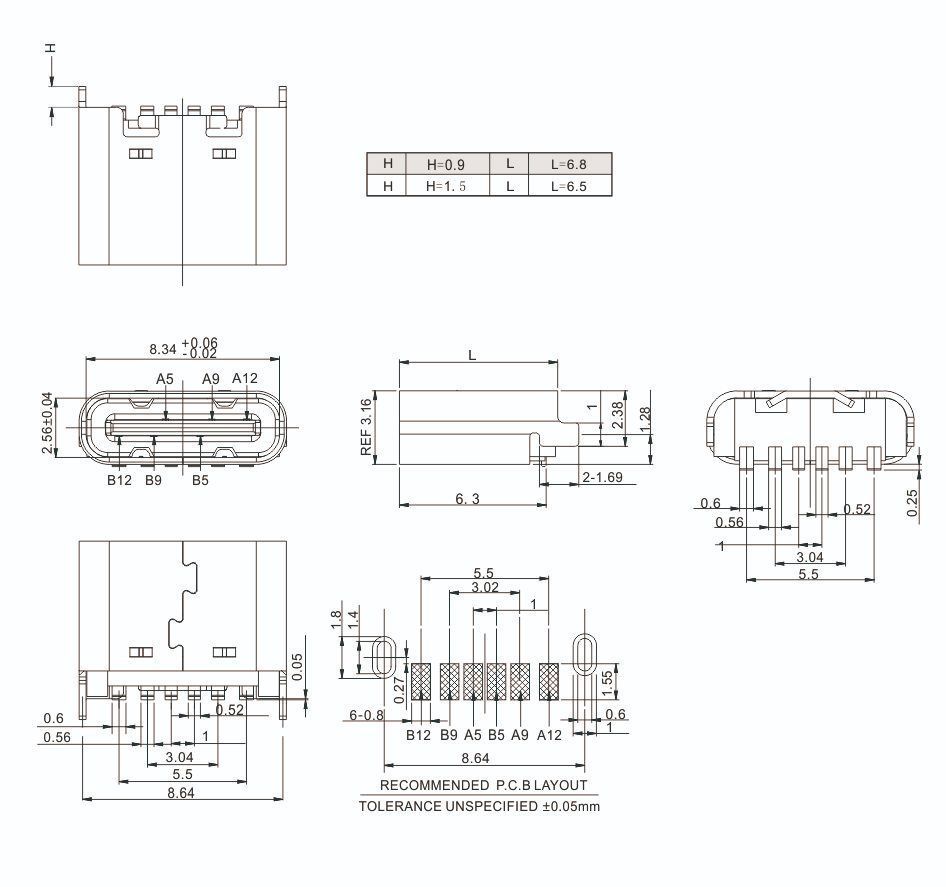

HJ-TS-T015
Specifications
◆ Insertion force: 0.5 ～ 2.0kgf
◆ Demoulding force: 0.8 ～ 2.0kgf
◆ Durability: 10000 cycles
◆ Rated current: 3.0A
◆ Rated voltage: 5.0V
◆ Insulation resistance: 100M Ω/min
◆ Dielectric voltage AC: 100V/min
◆ Working temperature: - 30 ℃~+80 ℃
◆ Keep the maximum temperature on the board at 260 ℃ for 10 seconds
◆ Insertion force: 0.5 ～ 2.0kgf
◆ Demoulding force: 0.8 ～ 2.0kgf
◆ Durability: 10000 cycles
◆ Rated current: 3.0A
◆ Rated voltage: 5.0V
◆ Insulation resistance: 100M Ω/min
◆ Dielectric voltage AC: 100V/min
◆ Working temperature: - 30 ℃~+80 ℃
◆ Keep the maximum temperature on the board at 260 ℃ for 10 seconds
