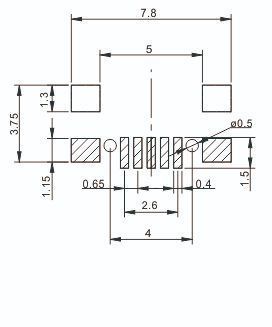

HJ-TS-S044
Basic description
Specifications
◆ Current rating: 1A Max
◆ Dielectric withstand voltage, AC 100V, lasting for 1 minute
◆ Contact resistance: maximum 30m
◆ Insulation resistance: 100 m/min
◆ Total mating force: maximum 3.57 kgf
◆ Total tripping force:
1.0 kgf/min, 0.81~2.05 kgf/min, after 10000 plugging cycles
◆ Temperature range: - 30 ℃~80 ℃
Specifications
◆ Current rating: 1A Max
◆ Dielectric withstand voltage, AC 100V, lasting for 1 minute
◆ Contact resistance: maximum 30m
◆ Insulation resistance: 100 m/min
◆ Total mating force: maximum 3.57 kgf
◆ Total tripping force:
1.0 kgf/min, 0.81~2.05 kgf/min, after 10000 plugging cycles
◆ Temperature range: - 30 ℃~80 ℃
